The Navy Built a Secret Indoor Ocean

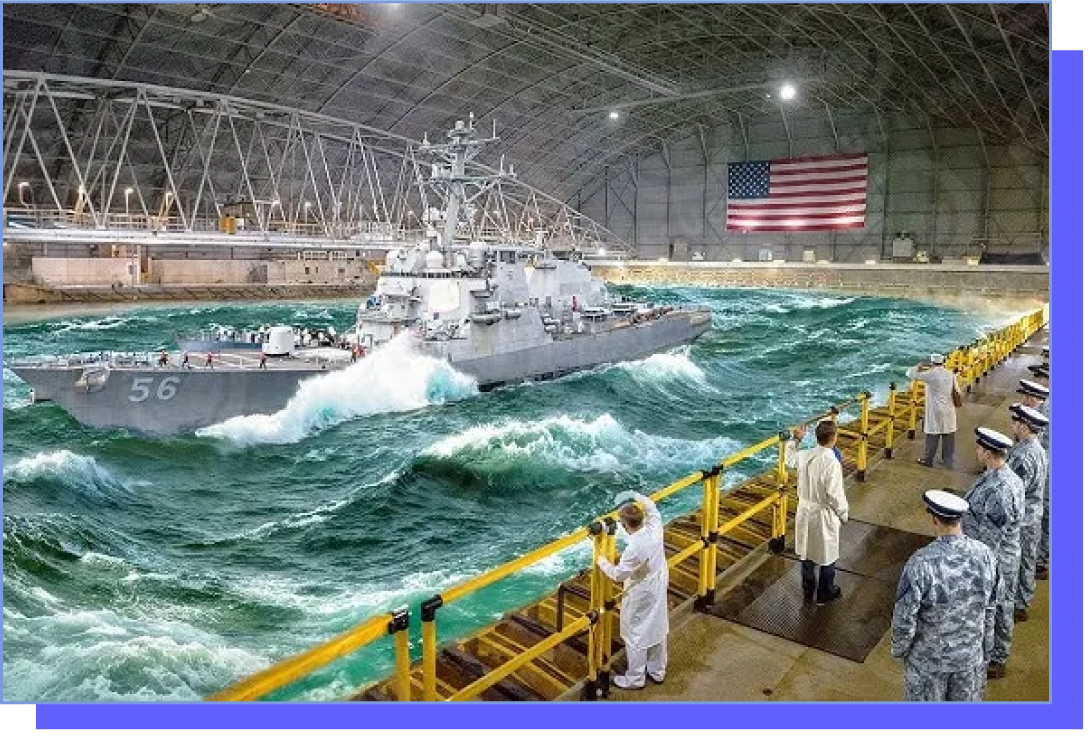

Tucked away in Maryland, the U.S. Navy has built something straight out of a sci-fi movie—a secret indoor ocean. It’s called the Maneuvering and Seakeeping Basin (MASK), and it's not a fancy swimming pool. It’s one of the most advanced engineering facilities in the world, and most people have never even heard of it.
This massive water tank is used to simulate real-life ocean conditions, helping the Navy test the performance of ships in a perfectly controlled environment. Engineers use this data to make sure every ship behaves as expected, even in the roughest seas.
What makes MASK so impressive is the precision with which it can simulate waves from any ocean on Earth. That means before any billion-dollar ship hits the actual ocean, it’s been put through its paces in this highly scientific pool.
Inside the Navy’s Hidden Wave Facility at Carderock
The MASK facility is located at the Naval Surface Warfare Center in Carderock, Maryland. Nestled within a larger research campus, this facility has a low profile despite its immense value to national defense.
Its history dates back to the Cold War era, when the Navy began to invest in more sophisticated ship design and testing methods. Over the years, it has evolved into one of the most advanced hydrodynamic testing facilities in the world.
The main purpose of MASK is to let engineers test and refine scale models of Navy ships. Before a new ship is built, it must prove itself here. This saves time, money, and ensures safety when those ships are eventually deployed around the world.
Specifications of the Indoor Ocean
The indoor ocean at Carderock is no small pool. It spans 360 feet in length and 240 feet in width, covering nearly a football field’s area. The tank is filled with over 12 million gallons of water and is 20 feet deep.
Its design includes sloped sides and a flat testing area in the center, allowing waves to move naturally and dissipate like they would in real conditions. The walls are also reinforced to handle the energy from wave impacts during extreme simulations.
A retractable roof was once part of the structure, housed under what used to be the world’s largest geodesic dome. This massive dome has since been removed, but the facility’s core capabilities remain world-class.
216 Paddles That Can Simulate Any Ocean Wave

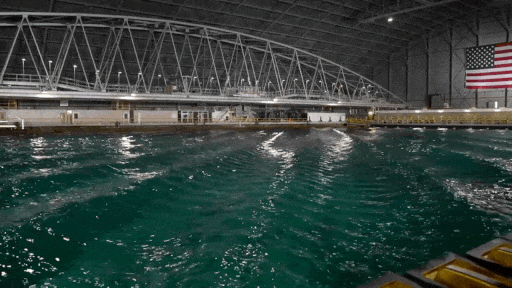

MASK's standout feature is its 216 wave-generating paddles. These giant paddles line the walls and are individually controlled by advanced software systems.
Each paddle can be programmed to move in sync or independently, allowing engineers to simulate a variety of wave types—from gentle swells to chaotic storm conditions. This level of control is unmatched in nature.
The paddles are engineered with precision motors and sensors that allow minute adjustments in angle, frequency, and timing. This makes it possible to create highly realistic wave environments for any sea condition in the world.
How the Navy Creates Custom Wave Patterns
The paddles work together to produce specific wave characteristics. Engineers can define the amplitude (height), frequency (how often the waves come), and direction (which way the waves travel).
By tweaking these variables, they can simulate everything from calm tropical waters to the roughest conditions in the North Atlantic. This allows ship designs to be tested under a wide range of deployment scenarios.
Wave patterns can also be layered and combined. For instance, engineers can simulate wind waves, swell waves, and even breaking waves all at once. This complexity helps improve the realism and reliability of the tests.
Mind-Blowing Wave Demonstrations
One of the most fascinating demos at MASK involves colliding waves. Engineers can send two or more wave trains toward each other, timing them so they meet at a precise point.
When these waves intersect, they create sudden, towering peaks—similar to rogue waves in the ocean. This helps test how ships respond to sudden changes in sea state.
Another incredible setup is the “bullseye” pattern, where waves come from all directions and converge at a single point. This simulates real-world situations like storm centers, where waves can be multidirectional and chaotic.
Why the Navy Built an Indoor Ocean
The core reason for building this massive indoor ocean is simple: to test before building. With military ships costing billions of dollars, there’s no room for design errors.
In the past, ships were tested after they were built, leading to expensive retrofits if they performed poorly. MASK allows engineers to identify design flaws early and fix them before production begins.
This proactive approach not only saves money but also ensures that Navy personnel are operating the safest, most reliable ships possible. It’s a smart investment in innovation and preparedness.
Scale Models: Why 1/46th Size Matters
Every ship tested at MASK is modeled at 1/46th of its full size. This specific scale ensures that the models behave in a physically accurate way when placed in the wave tank.
The choice of scale is based on hydrodynamic principles that help maintain accuracy when scaling down real-world behaviors.
To create these models, engineers use exact blueprints and high-precision materials. They even replicate the weight distribution and center of gravity to ensure testing is as realistic as possible.
Understanding the Froude Number
The Froude number is a key concept in naval architecture. It’s a ratio that helps engineers maintain physical similarity between scale models and full-sized ships.
This number is calculated based on a ship’s speed and the gravitational pull on water. Matching the Froude number in testing ensures that wave resistance and ship motion are correctly simulated.
Without this, the data from the scale models would be meaningless. The Froude number makes it possible to translate small-scale results into full-scale insights with confidence.
Realism in Testing: Filming in Slow Motion
To make testing even more accurate, the Navy films model tests in slow motion—precisely 6.8 times slower than real-time. This matches how waves would behave around a full-sized ship.
High-speed cameras capture every detail, from how waves hit the hull to how the ship responds. Engineers use this footage to fine-tune designs and improve performance.
The result? Footage of model ships that look nearly identical to real vessels navigating stormy seas. This visual realism adds another layer of trust to the data collected.
Predicting Ship Behavior from Wave Tanks
The results from MASK have proven to be highly reliable. Time and again, full-scale ship performance has matched what was predicted in wave tank tests.
This level of predictive accuracy has made MASK an indispensable part of the Navy’s shipbuilding process. From submarines to aircraft carriers, every vessel goes through this test phase.
In some cases, insights from MASK have even influenced ship doctrine—like how fast a ship should travel in certain seas, or how it should turn to reduce drag and fuel consumption.
The Science of Ocean Wave Personalities
Not all oceans are created equal. Different bodies of water have their own “wave personalities.” For example, the North Sea is known for short, choppy waves, while the mid-Atlantic sees long, rolling swells.
This variability is due to factors like wind direction, storm development, and geography. Engineers study these patterns to replicate them inside MASK.
By doing this, they ensure ships are prepared for the specific conditions they’ll face during deployment—whether that’s patrolling Arctic waters or navigating the Pacific.
Recreating Global Ocean Conditions
MASK engineers maintain a vast database of wave patterns from oceans around the world. This includes storm types, wave height distributions, and multi-directional flows.
They can input this data into the paddle control system and recreate those exact conditions in the tank. It’s like having a piece of every ocean on Earth, inside one building.
This allows for mission-specific testing. For example, if a ship is going to be deployed near Japan, engineers can simulate the regional wave behavior of that area to test its performance.
The Role of Wind in Wave Formation
Most ocean waves begin with wind. The height and shape of waves depend on how fast the wind blows, how long it blows, and how far it travels over water (called "fetch").
Fetch width and water depth also play roles in wave formation. Deeper water usually leads to larger, more powerful waves, while shallow waters create breakers.
All these variables are taken into account at MASK. Engineers can replicate wind-driven wave scenarios with high precision to understand how a ship will react.
Most Sailors Don’t Know This Place Exists
Despite its importance, most sailors in the Navy don’t know about MASK. It’s not part of their training, and it’s not advertised.
This secrecy is partly due to national security. MASK plays a critical role in designing advanced ships and submarines, many of which are classified.
But it’s also because the work here is highly technical and behind-the-scenes. It’s a quiet powerhouse that keeps America’s naval edge sharp.
Safety and Restrictions: No Swimming Allowed
Even though it might look like the world’s coolest pool, MASK is strictly off-limits for recreation. No swimming, diving, or wading allowed.
The water is engineered for testing, not comfort. There are wave generators, testing rigs, and sensitive instruments everywhere.
Safety is the top priority. The waves generated here can be dangerous, especially when combined with the mechanical equipment in the tank.
Innovation at Its Best: Testing Before Building
MASK reflects the Navy’s forward-thinking approach to ship design. Instead of taking risks with full-sized ships, they test, refine, and optimize every detail beforehand.
This iterative process mirrors how startups operate: build fast, test, get feedback, and improve. It’s a smart way to manage risk in a high-stakes environment.
The result is a fleet that’s powerful, reliable, efficient, and battle-ready. All thanks to a facility most people will never see.
Final Thoughts: A Hidden Gem of American Ingenuity
The Maneuvering and Seakeeping Basin may not be famous, but its impact is enormous. Every Navy ship owes part of its performance to the testing done here.
It’s a marvel of engineering, a triumph of foresight, and a perfect example of how quiet innovation can lead to powerful results.
In an age where so much attention goes to flashy tech, this hidden ocean proves that sometimes the most important breakthroughs happen below the surface.
Frequently Asked Questions (FAQs)
Where is the Navy’s indoor ocean located?
It’s located at the Naval Surface Warfare Center in Carderock, Maryland. This is where the Navy tests scale ship models in a controlled, simulated ocean environment.
How big is the indoor ocean?
It measures 360 feet by 240 feet (around the size of a football field) and is 20 feet deep. The tank holds more than 12 million gallons of water.
Why did the Navy build an indoor ocean?
To test model ships in precise wave conditions before building real ones. This saves money, avoids errors, and improves ship safety.
What is the Froude number and why is it important?
It’s a math ratio that helps scale models behave like full-size ships. Matching this number ensures that test results are accurate.
Can the facility simulate waves from any ocean?
Yes, engineers can program the paddles to replicate waves from any part of the world using real data.
Is this facility open to the public?
No, it’s a secure military research site and not accessible to civilians.
